Complementary Machines
Accessories and auxiliary machines for a complete workshop.
The supporting cast of FOM solutions — assembly benches, profile trolleys, joint decoilers and specialised finishing machines — that complete a production floor and extend the capability of your core machinery.
Highlights
- Assembly benches with fixed and rotating tables
- Profile trolleys for vertical storage
- Rubber strip decoiling trolleys
- Complete FOM ecosystem compatibility

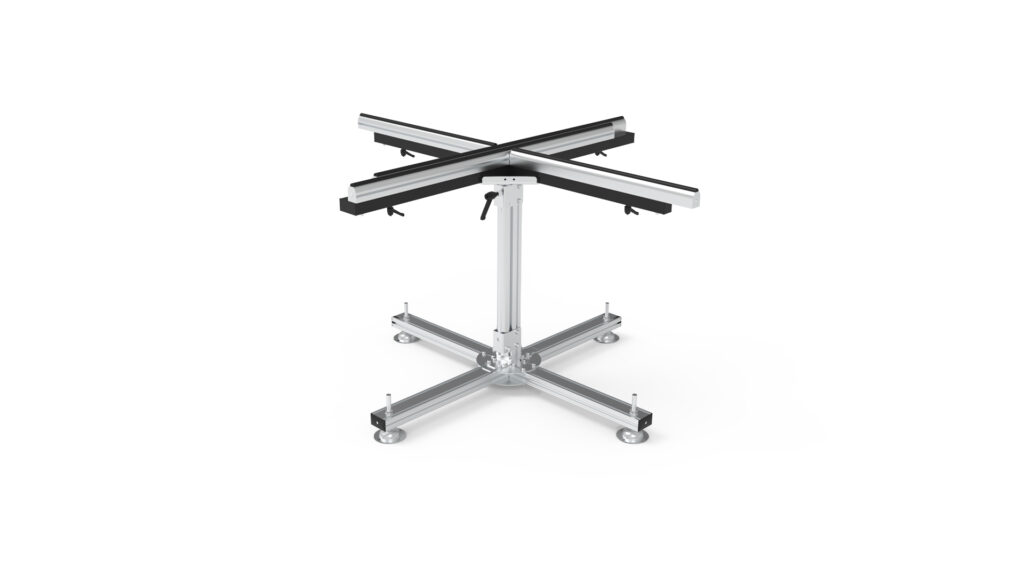

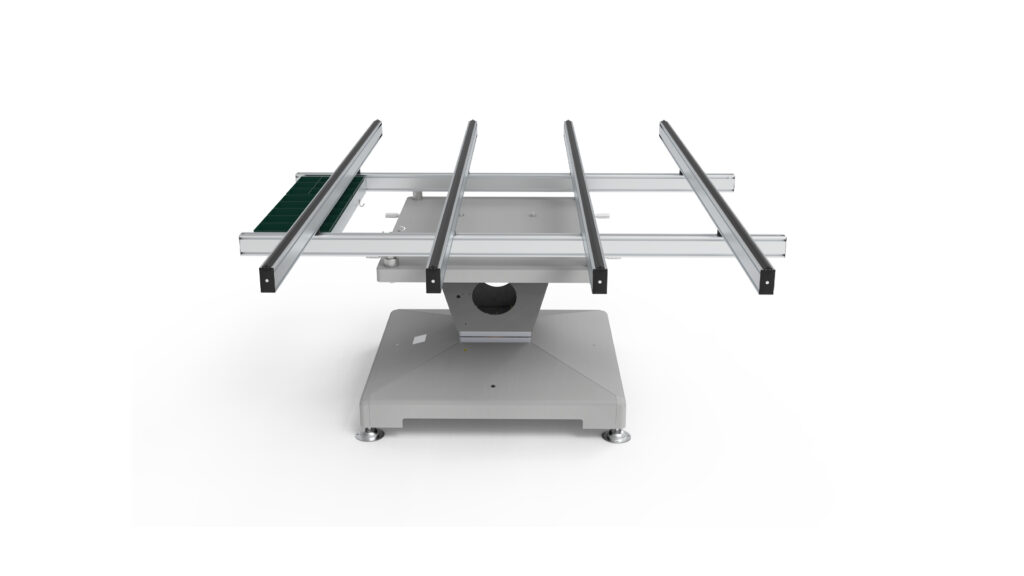

Assembly Benches — JOB 07, JOB 20, JOB 10-360
Assembly benches with manually rotating worktable.
Assembly benches with manual 360° rotation, adjustable bars, contact surfaces coated with non-scratch shockproof rubber, and accessory holder tray. The JOB 20 adds an air network for pneumatic tools and pneumatic turning (80°). Maximum frame dimensions: 1620×2500 mm (JOB 07), 2500×2000 mm (JOB 10-360), 2600×2400 mm (JOB 20). Max loading: 80 kg (JOB 07), 130 kg (JOB 20), 180 kg (JOB 10-360).
- Manual 360° table rotation
- Non-scratch shockproof rubber contact surface
- JOB 20: pneumatic tools air network
- JOB 20: pneumatic 80° turning over
- Max load up to 180 kg

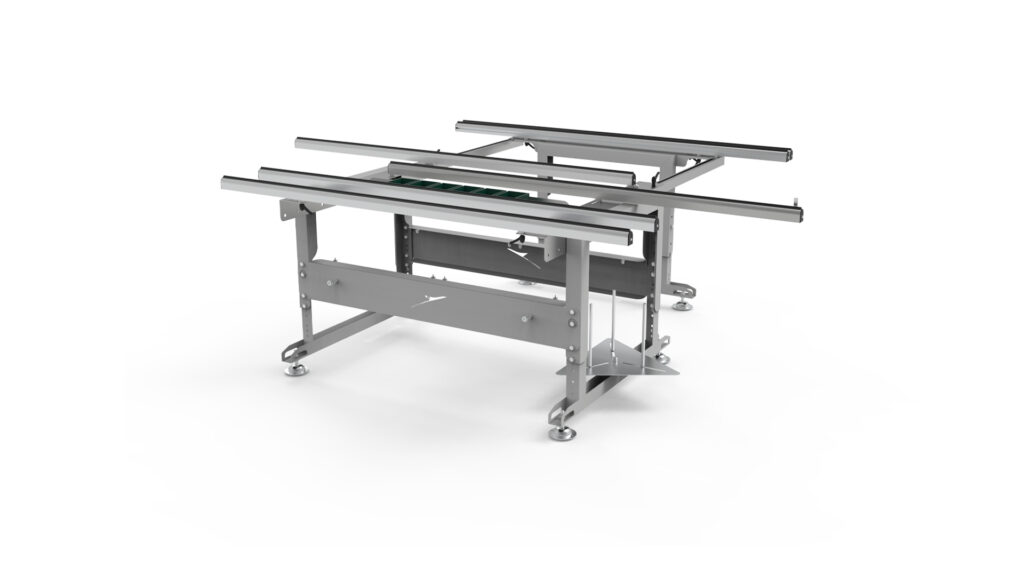

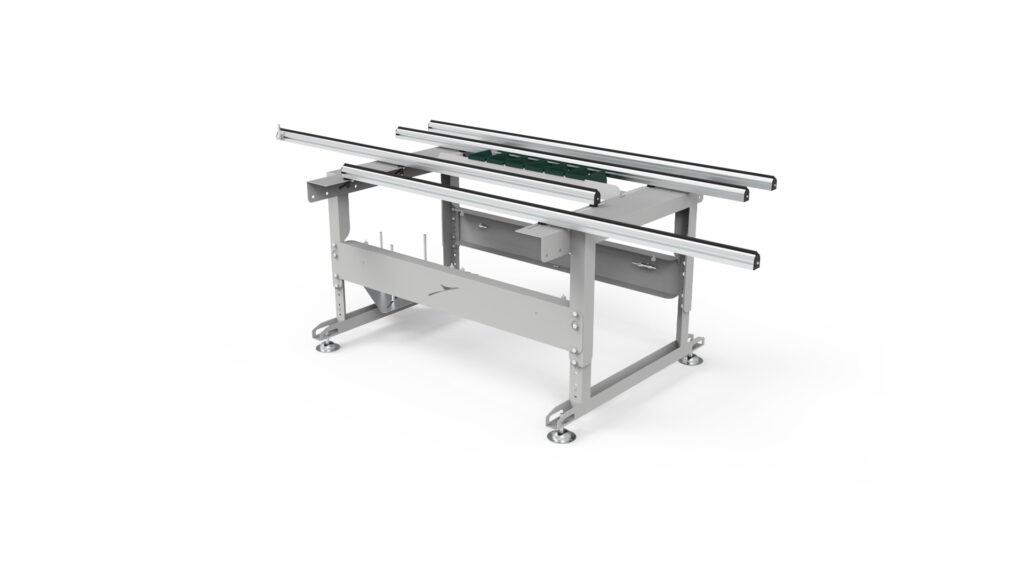

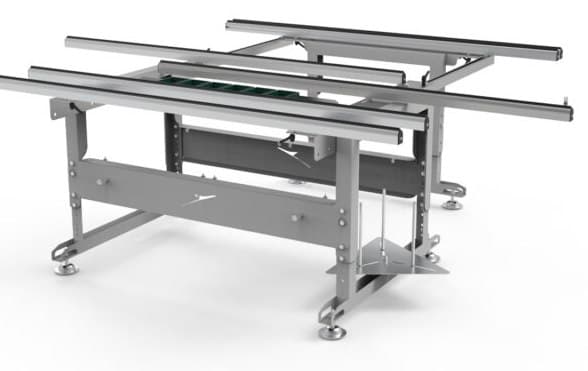

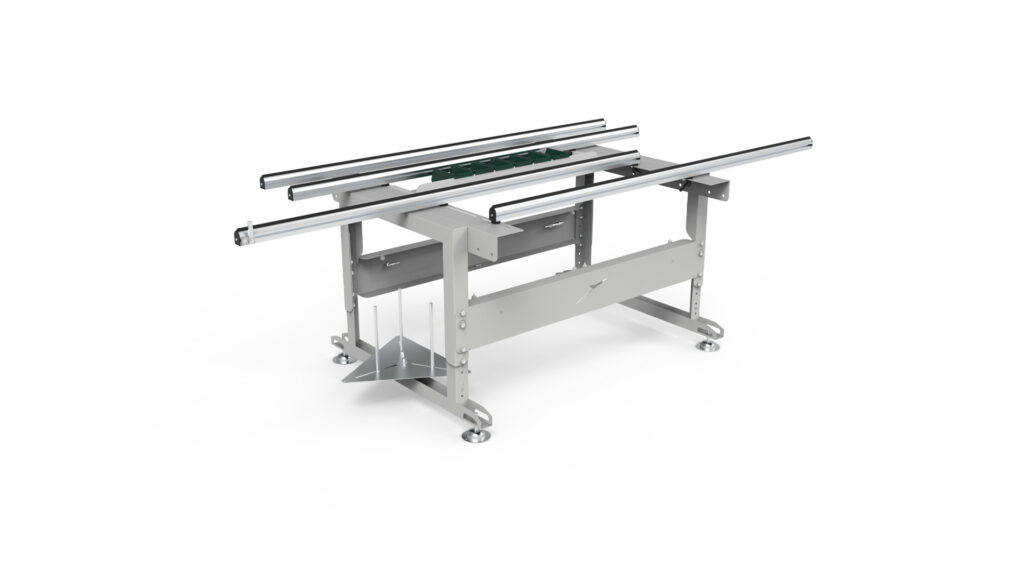

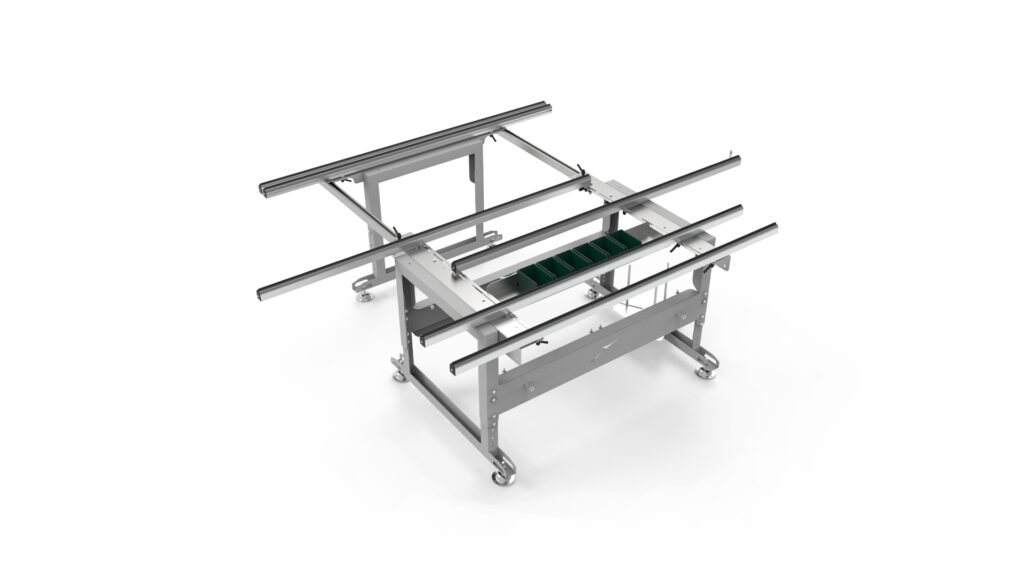

Assembly Benches — JOB 15, JOB 15-2000
Assembly bench with adjustable sliding bars on work table.
Assembly benches with contact surfaces in non-scratch, shockproof semi-rigid grey PVC. Equipped with 4 lengthwise sliding support bars, a pneumatic system with 2 connections and 6 hardware boxes. The JOB 15-2000 and JOB 15-3000 feature an extensible back support with 2 longitudinal sliding bars. Max loading 180 kg.
- Semi-rigid grey PVC contact surface
- 4 lengthwise sliding support bars
- Pneumatic system with 2 connections
- Extensible back support (JOB 15-2000/3000)
- Max loading 180 kg

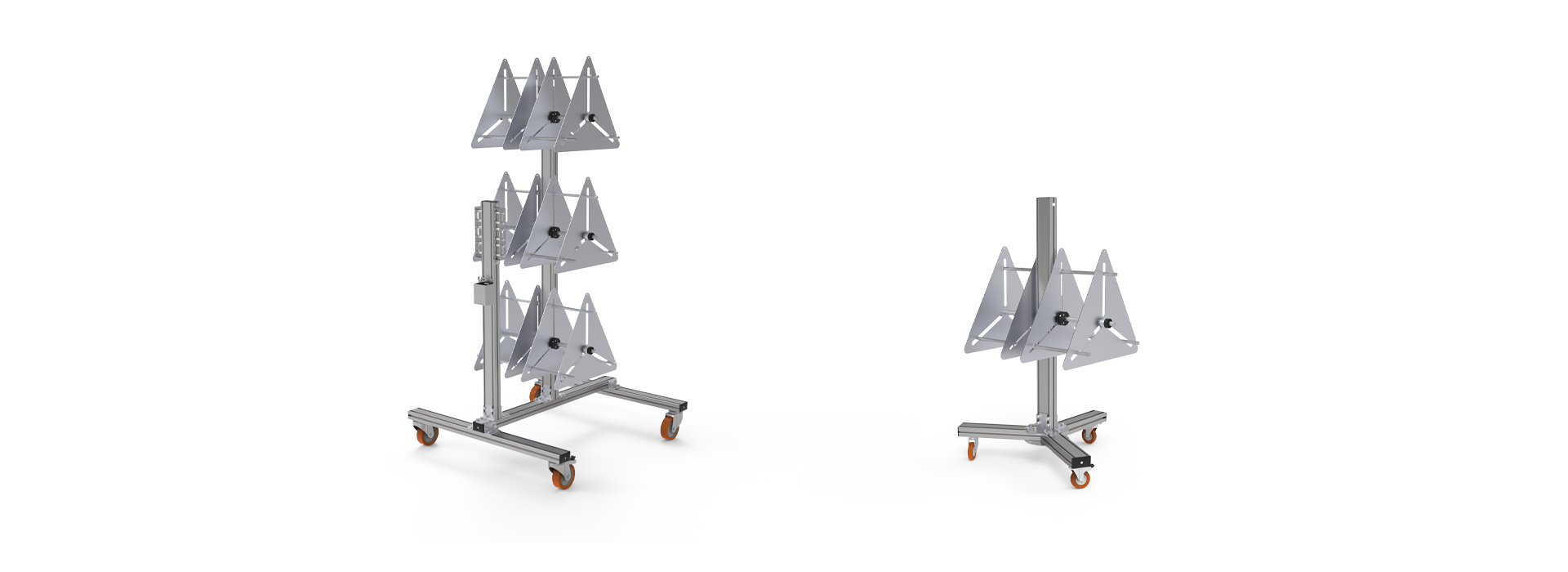

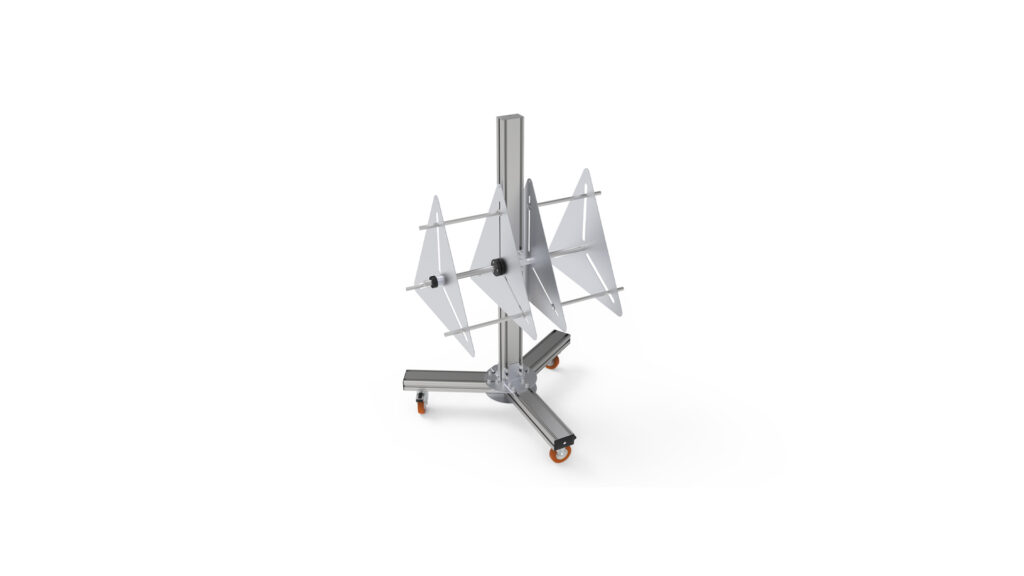

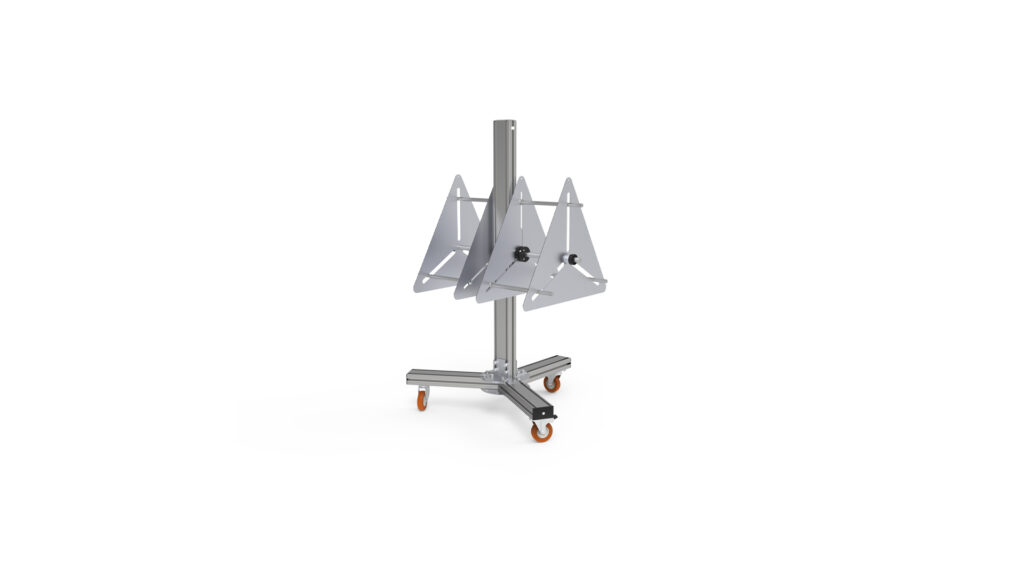

JOINT / JOINT XL
Decoiling trolley for rubber sealing strips.
The JOINT and JOINT XL are decoiling trolleys for rubber sealing strips. Depending on the model, they hold 2 or 6 reel holders. The JOINT XL features a seal locking guide for 6 standard coils. Both models have 4 swivel caster wheels, 2 with locking device.
- 2 or 6 reel holder capacity
- JOINT XL: locking guide for 6 standard coils
- 4 swivel casters, 2 with locks
- Compact, manoeuvrable design

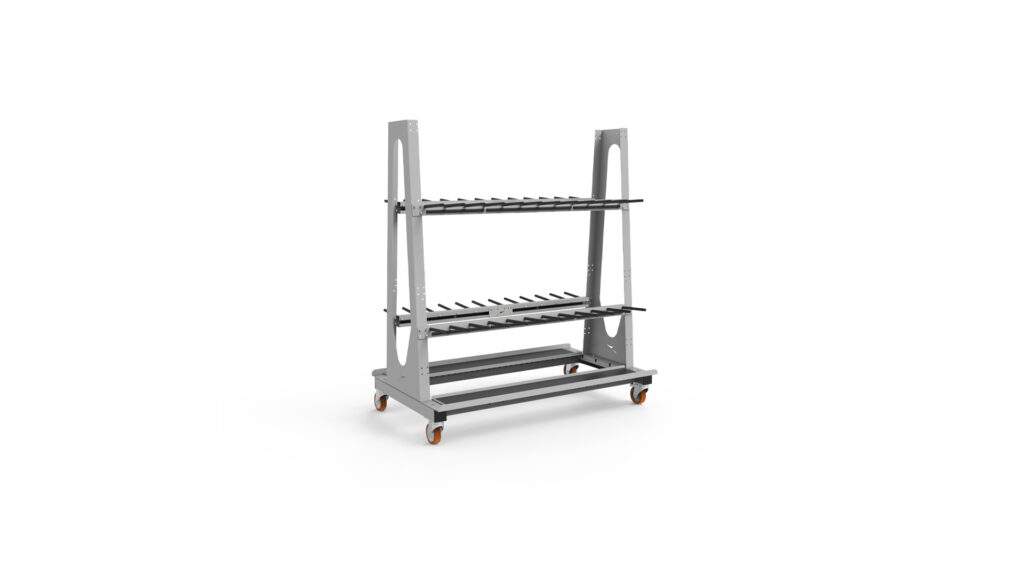

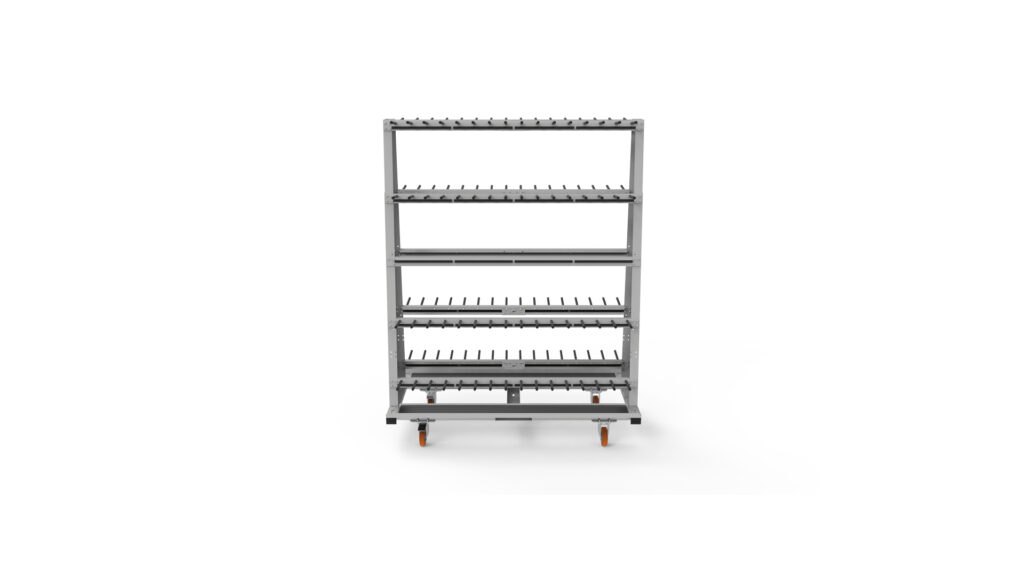

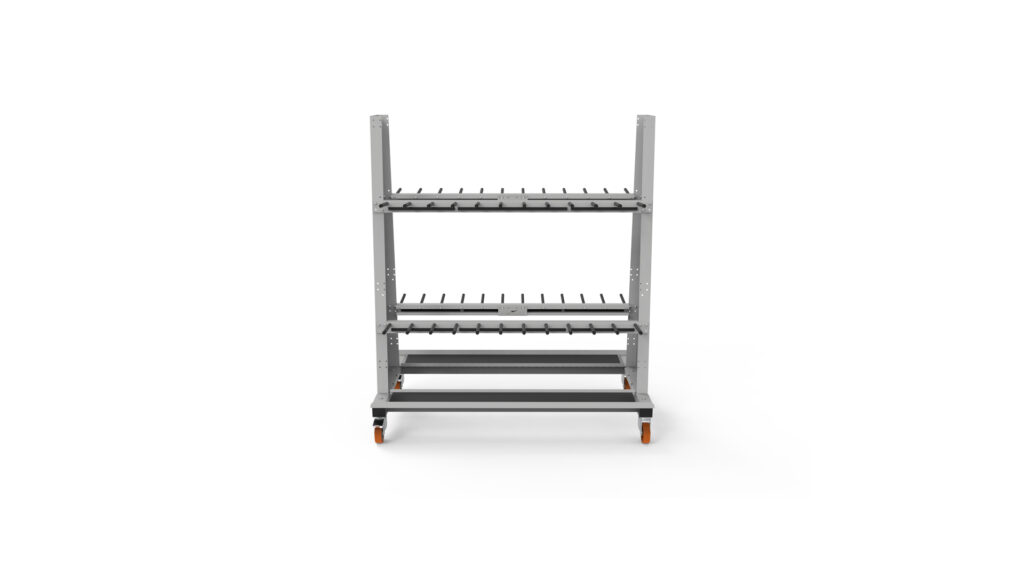

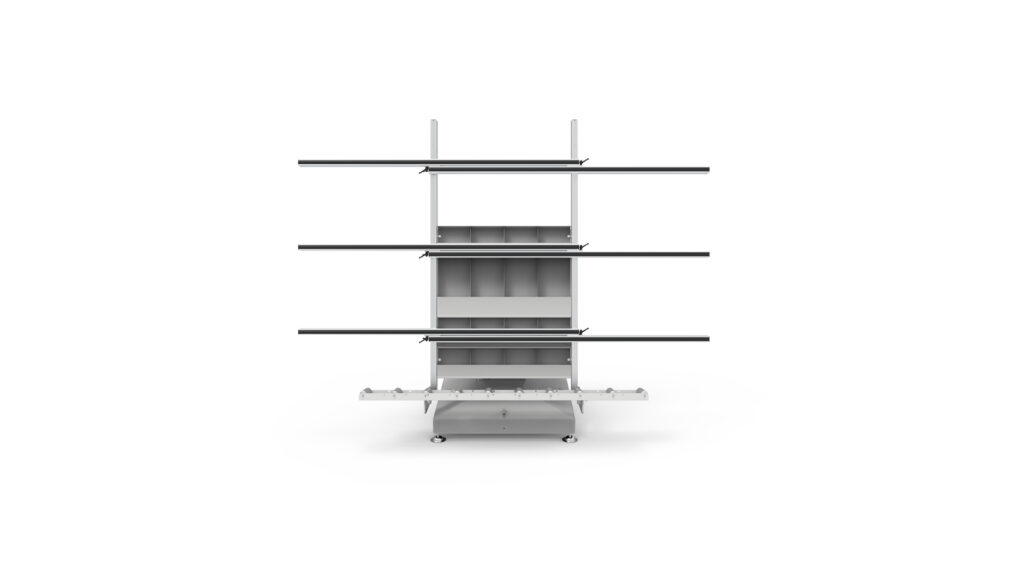

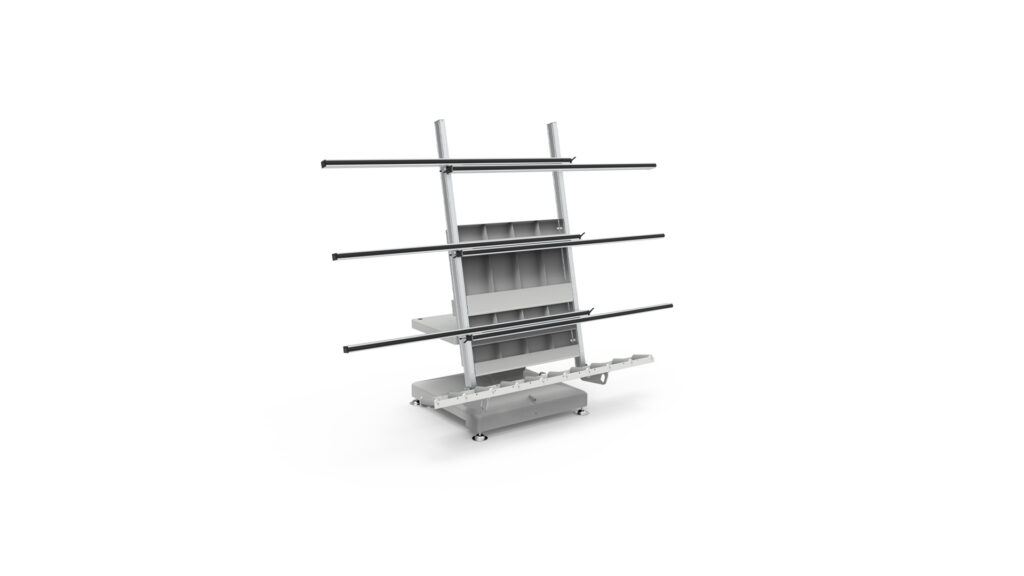

CARR Profile Trolleys
Trolleys for handling and storing profiles vertically.
Square section frame trolleys for vertical profile handling and storage. Contact surfaces are coated with non-scratch, shock-proof plastic. A rubber-coated supporting table and arms adjustable in 5 positions protect profiles from damage. The CARR 230Q has 22 compartments (560 kg max); the CARR 250Q has 30 compartments (850 kg max). All models feature 4 swivel casters, 2 with locks.
- Vertical profile storage and handling
- Non-scratch, shock-proof contact surfaces
- Arms adjustable in 5 positions
- CARR 230Q: 22 compartments, 560 kg max
- CARR 250Q: 30 compartments, 850 kg max
