Copy Routers
Reliable copy routing for locks, handles and hardware prep.
Copy routers purpose-built for aluminium window and door fabrication — fast and accurate routing of handle, lock and hinge pockets with minimal setup time.
Highlights
- Electro-pneumatic operation
- ER collet quick-change tooling
- Pneumatic tracer system
- Horizontal and vertical pneumatic vices

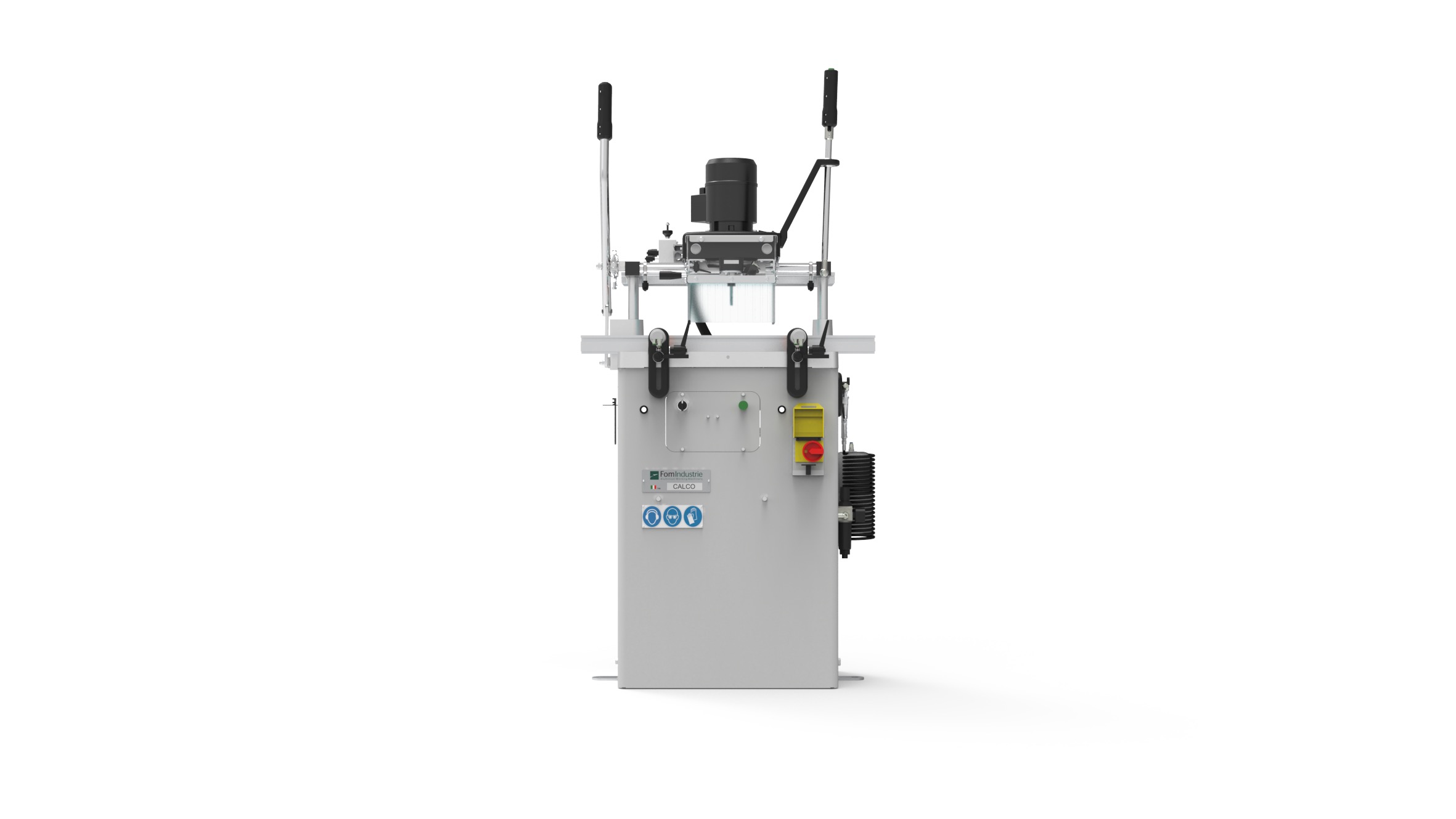

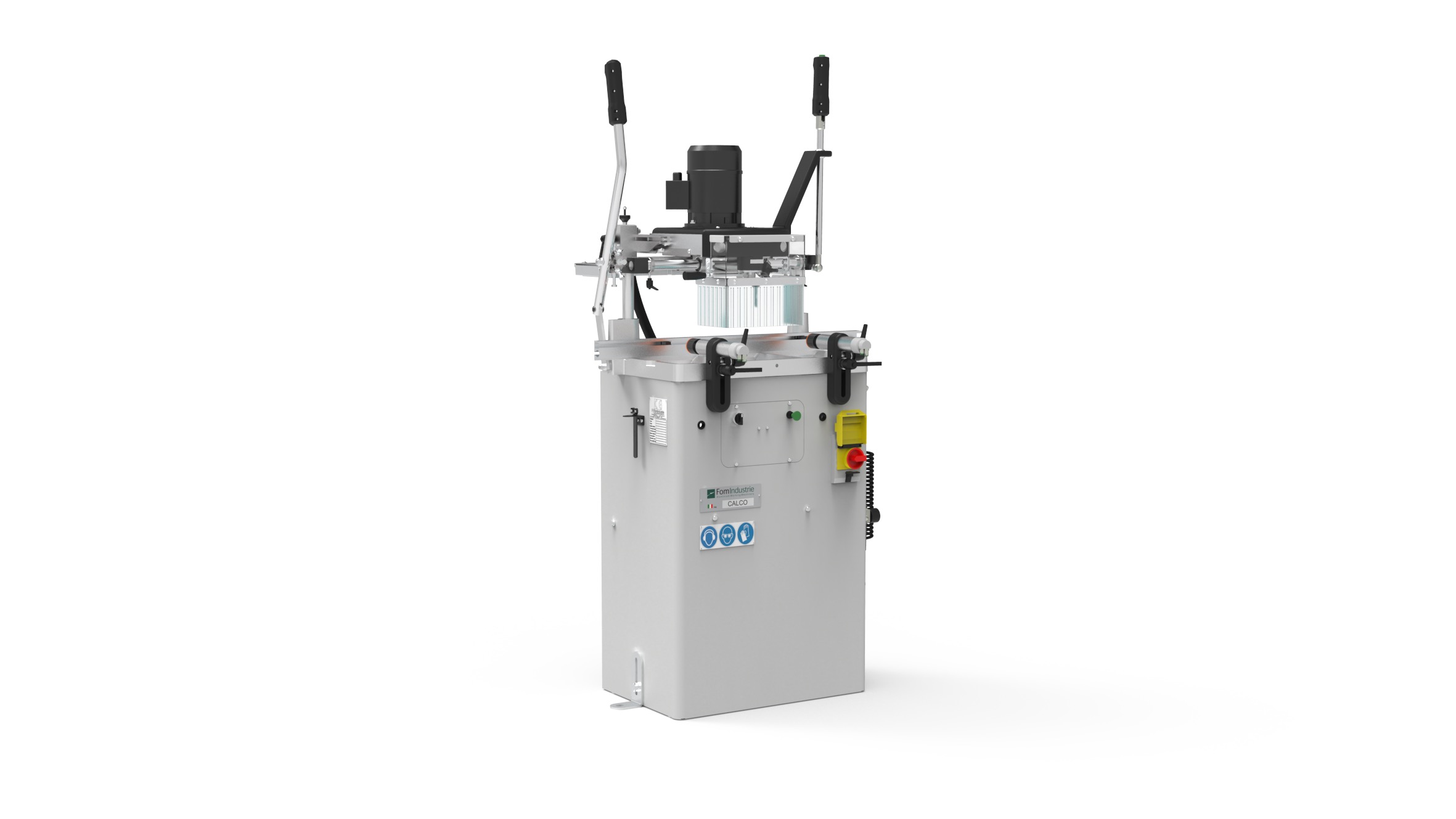

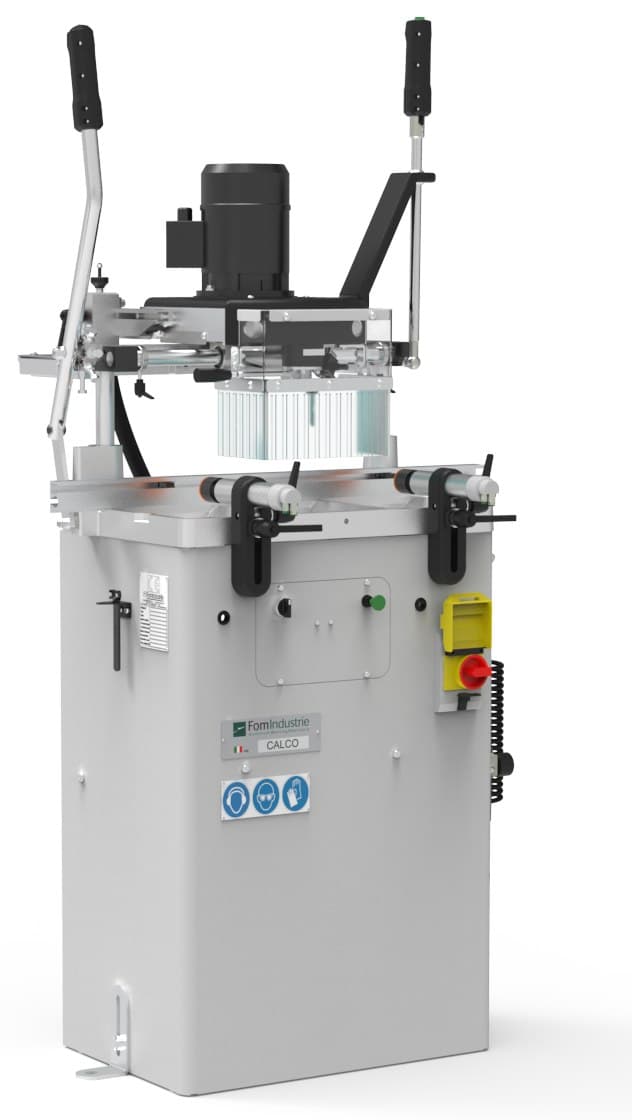

CALCO
Electro-pneumatic copy router combining ease of use with good performance.
The Calco electro-pneumatic copy router combines ease of use and good performance. Transfer of the head is by means of indirect levers. The quick change system for the tool in the ER16 collet holder spindle facilitates tool changing. Piece locking is by horizontal pneumatic vices. Two jigs with standard figure and a pneumatic tracer are provided.
- ER16 collet holder with quick-change
- Indirect lever head transfer
- Two standard-figure jigs included
- Pneumatic tracer and horizontal vices
Working capacity
Click to enlarge

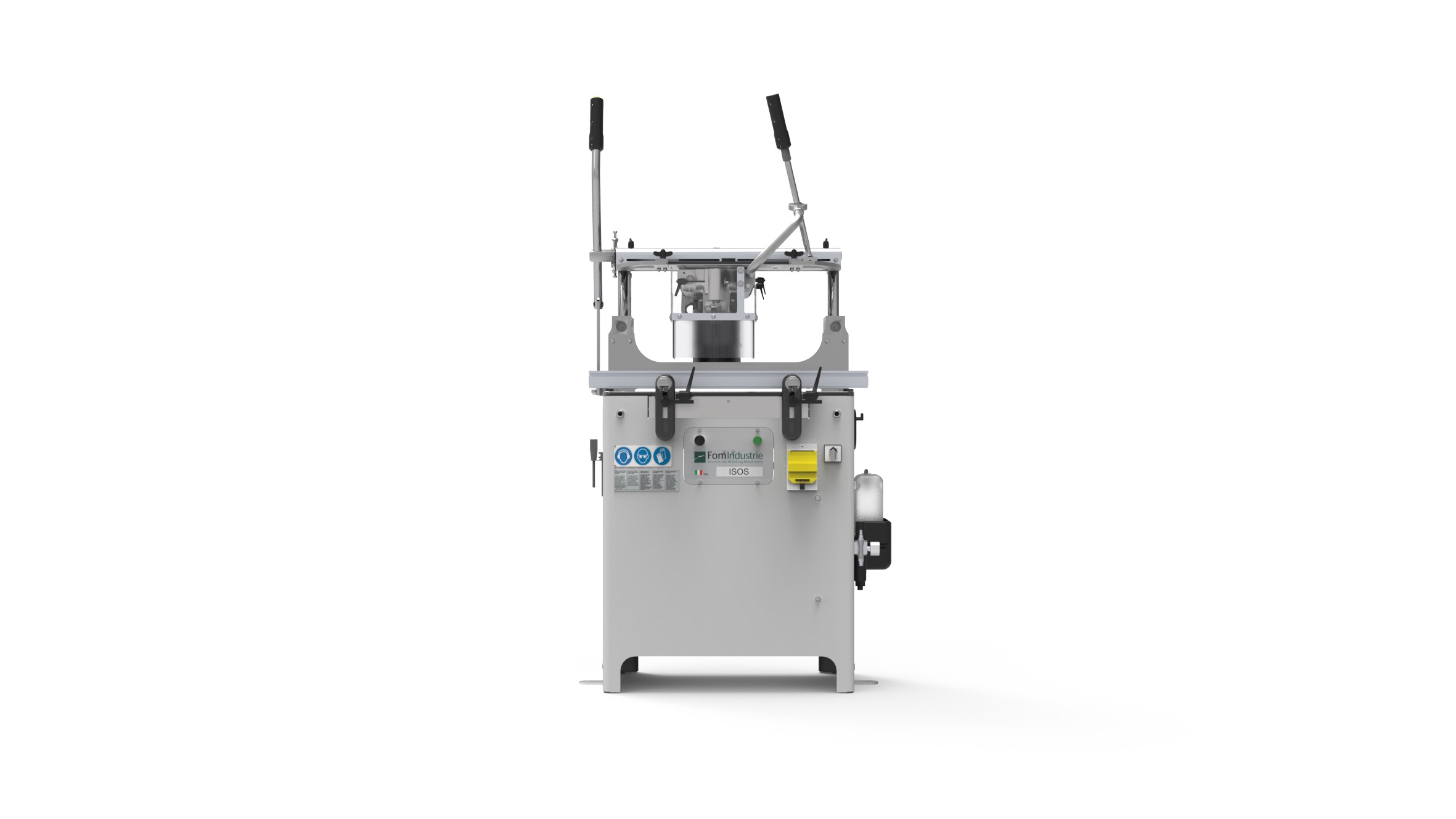

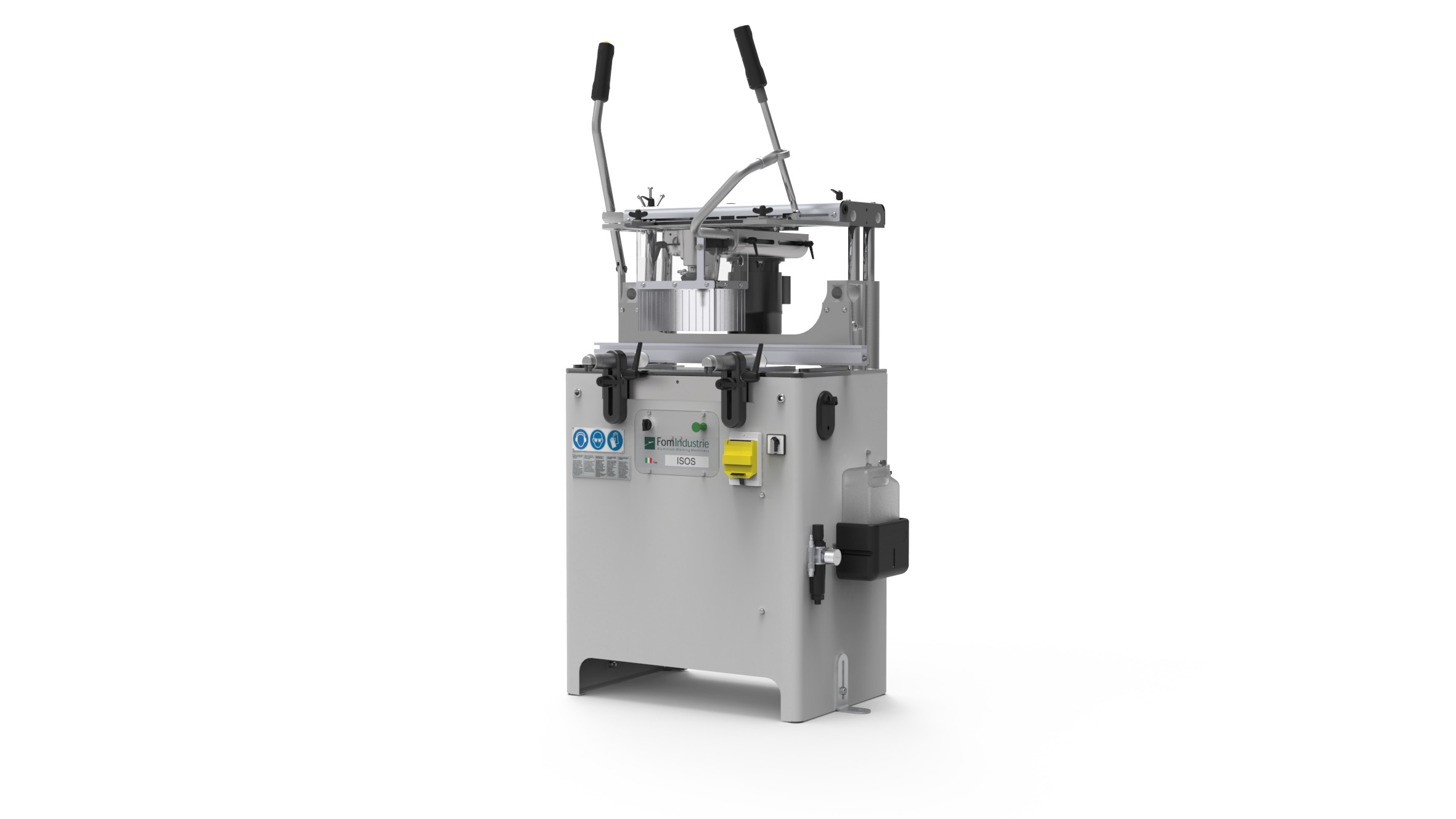

ISOS
Electro-pneumatic copy router with high-rigidity head unit.
The ISOS features a high-rigidity head unit and ER20 collet coupling. Transfer of the head is by indirect levers. Piece locking is ensured by a pair of horizontal pneumatic vices. The pneumatic tracer completes the equipment provided.
- High-rigidity head unit
- ER20 collet coupling
- Indirect lever head transfer
- Horizontal pneumatic vices and pneumatic tracer
Working capacity
Click to enlarge

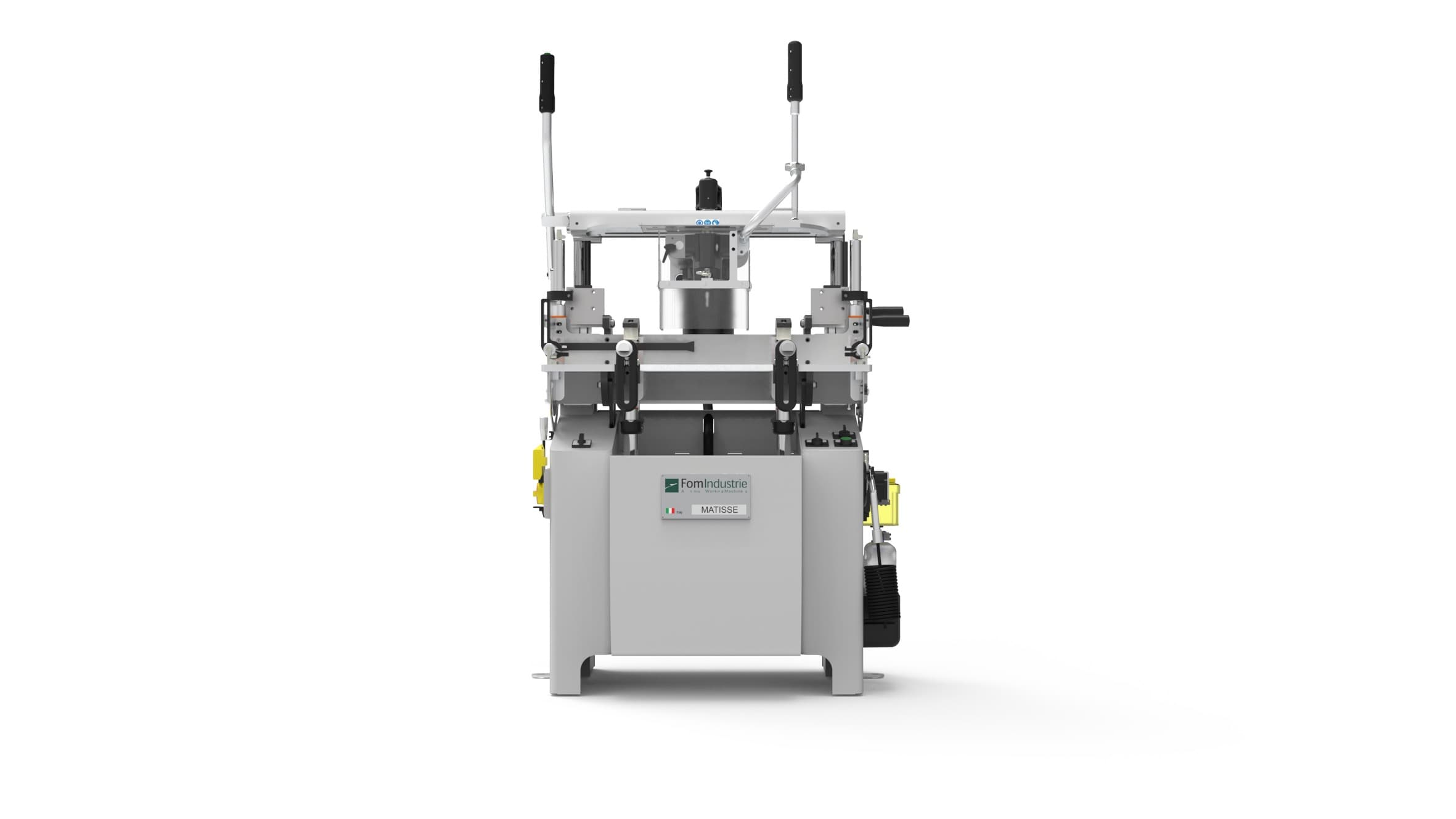

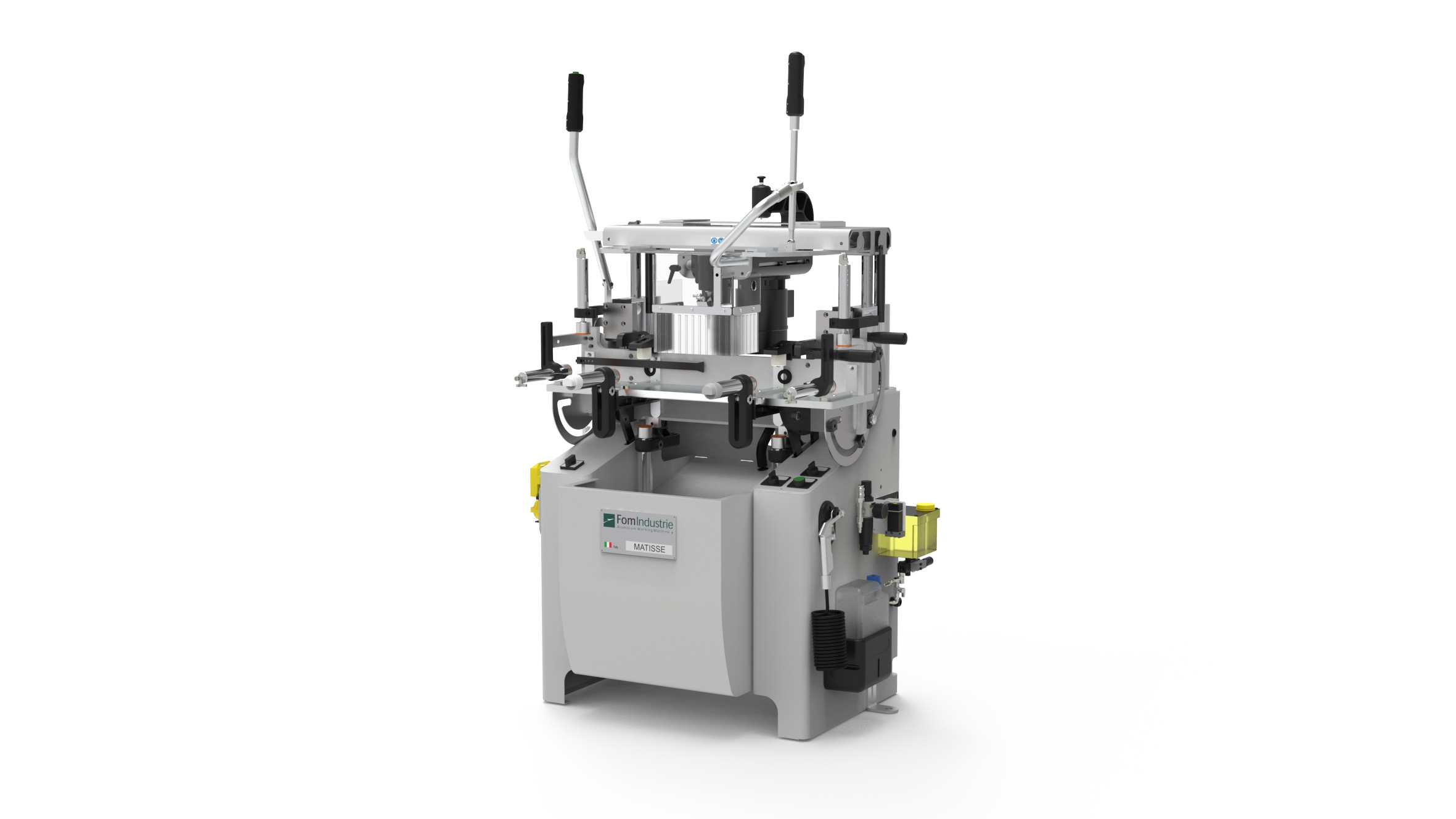

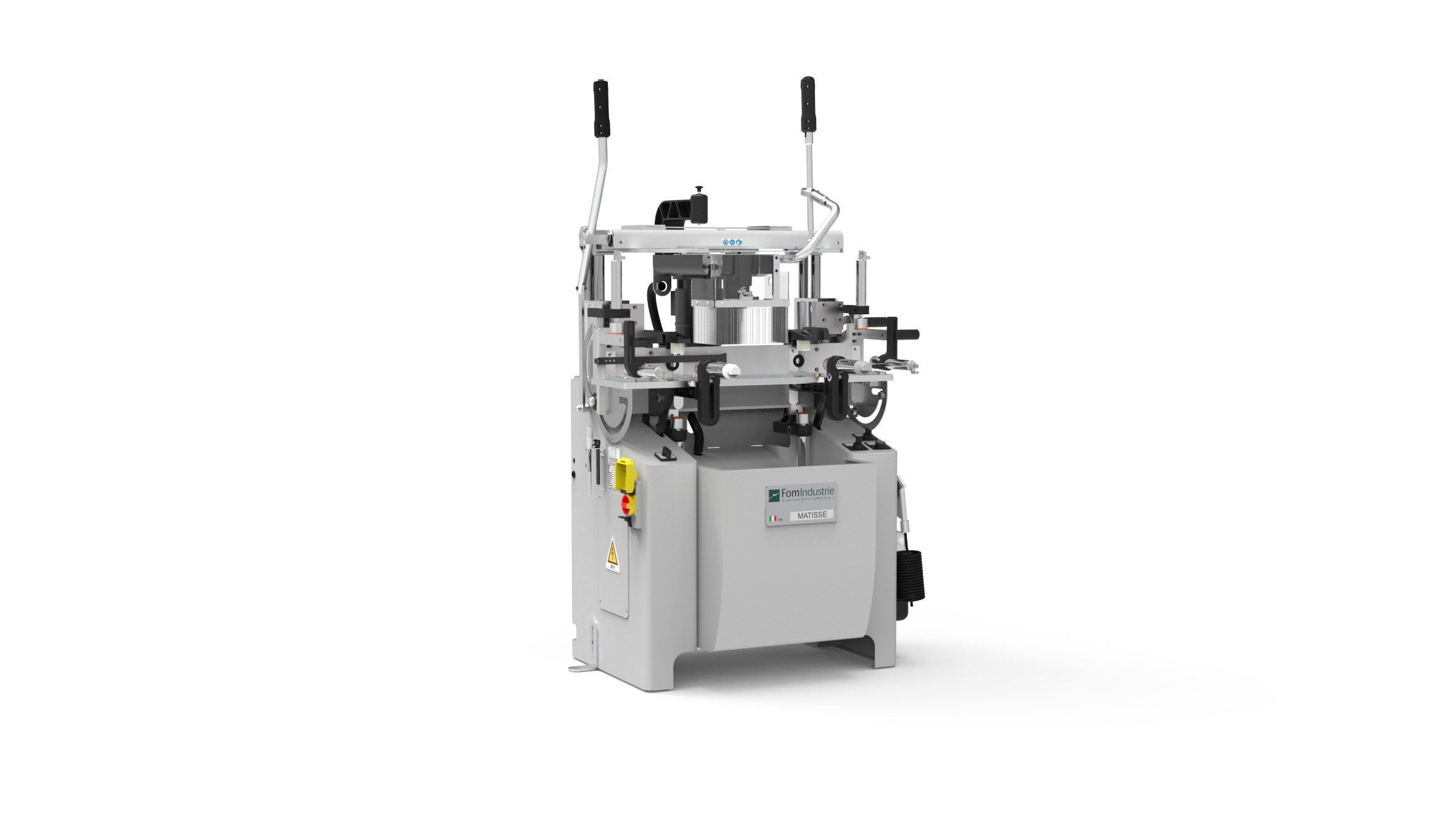

Matisse
Electro-pneumatic copy router with rotating work table.
The Matisse features a rotating work table that allows machining on two surfaces of the profile without unlocking from the vices, maintaining machining references throughout. This avoids continual profile repositioning and allows shorter tools, reducing vibration and noise. Transfer by indirect levers, ER20 quick-change spindle, horizontal and vertical pneumatic vices, two jigs and two independent pneumatic tracers.
- Rotating table for 2-surface machining
- No re-clamping needed between surfaces
- ER20 quick-change spindle
- Two independent pneumatic tracers
- Reduced vibration with shorter tools
Working capacity
Click to enlarge

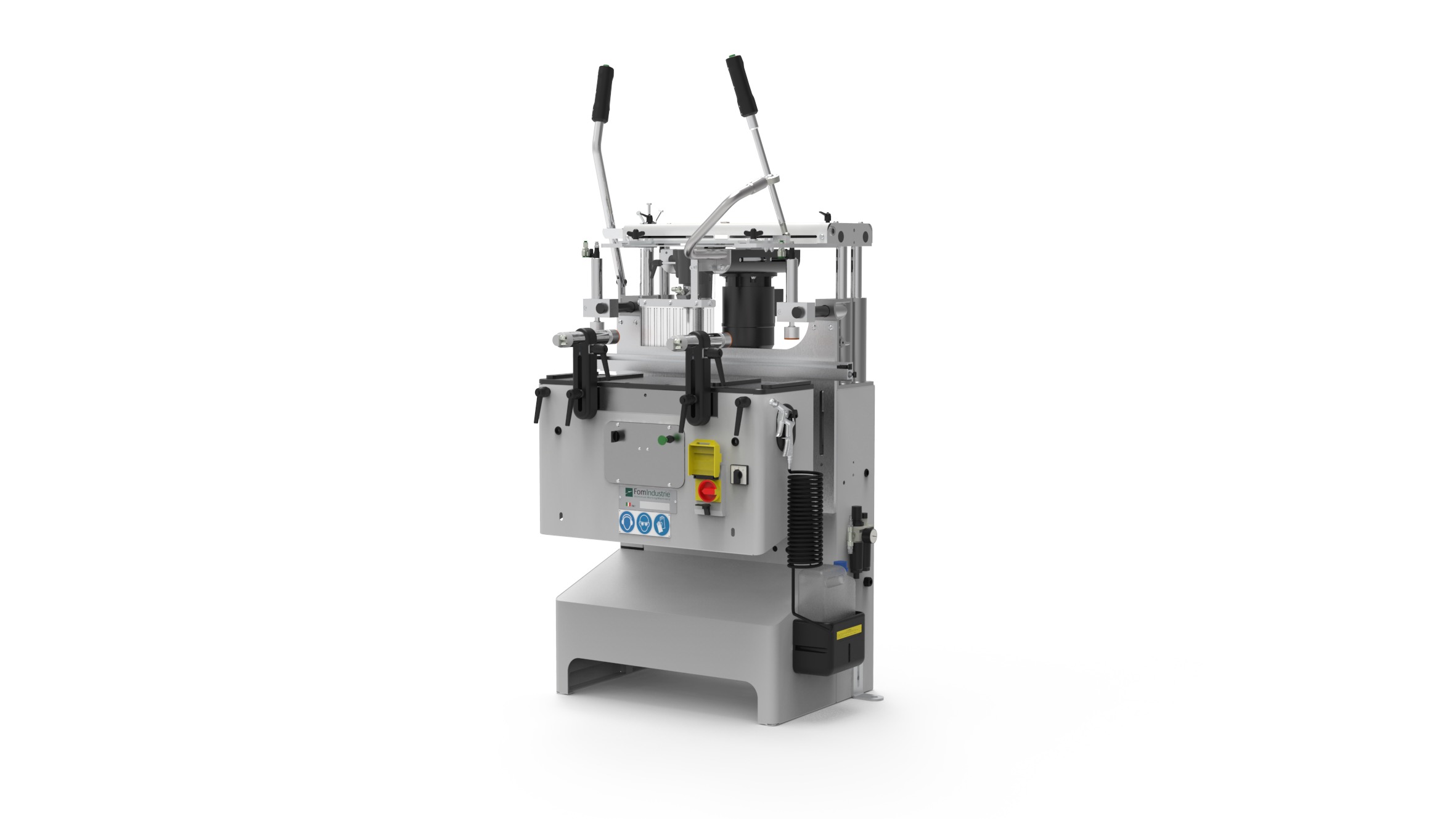

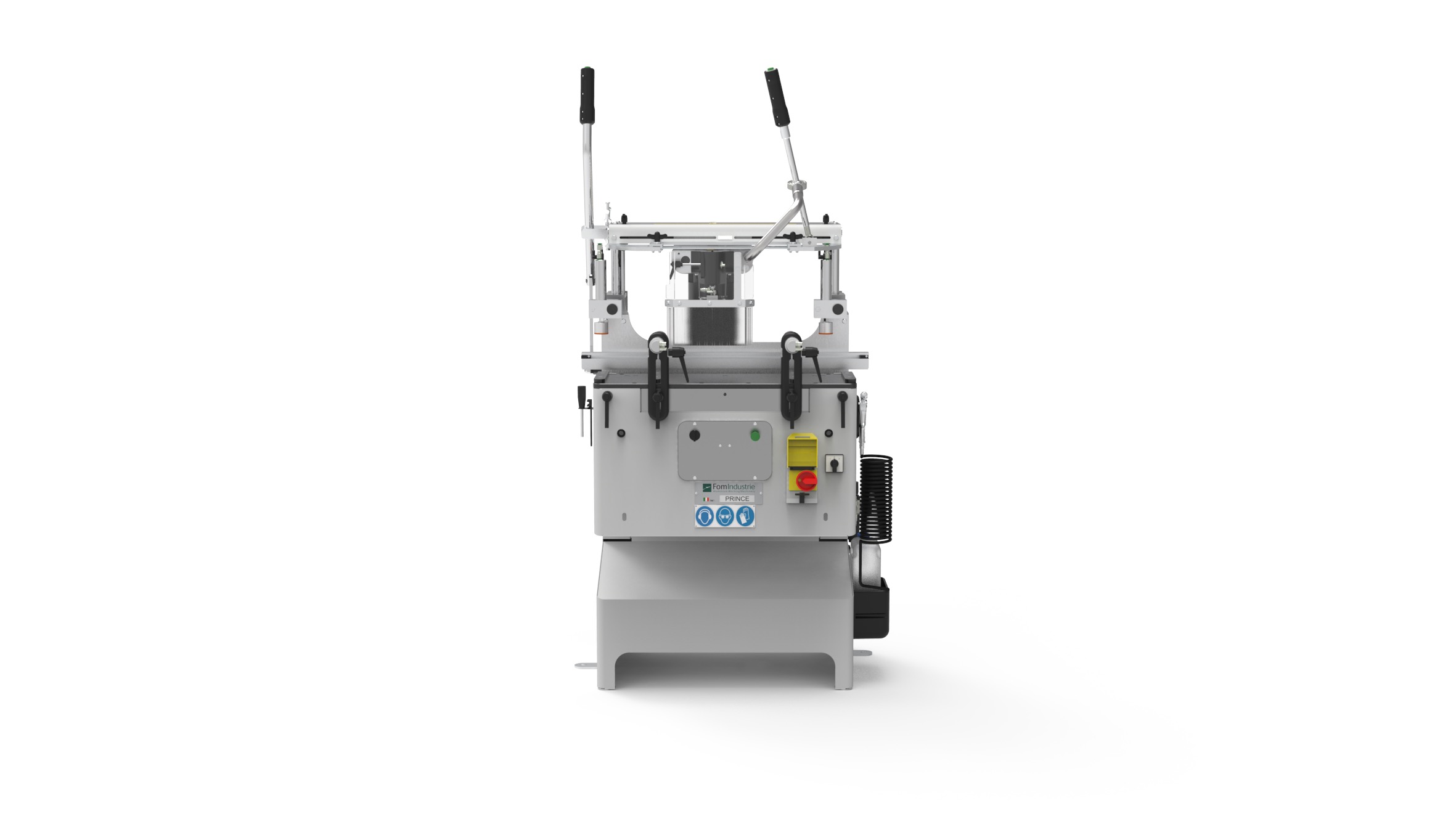

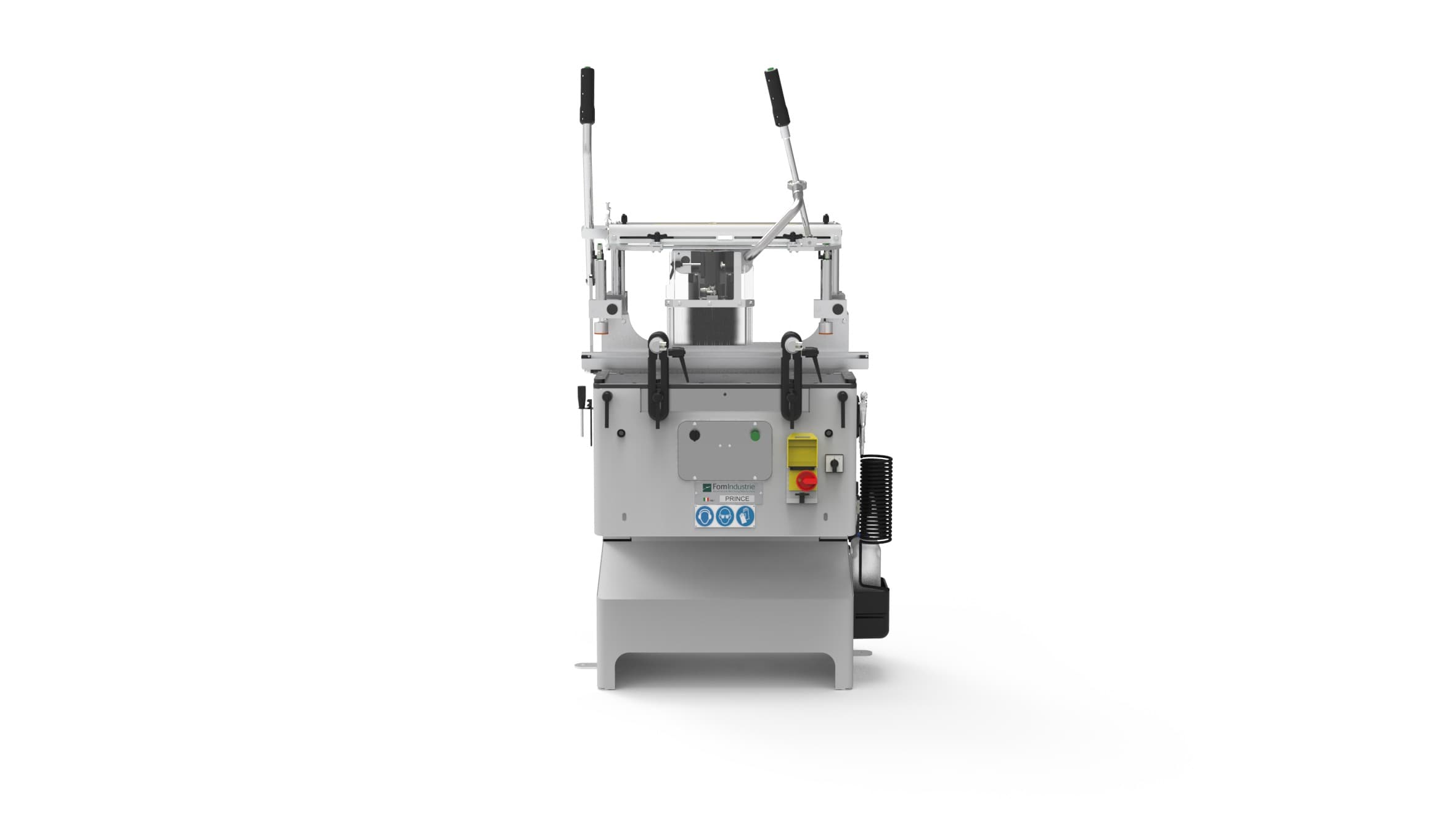

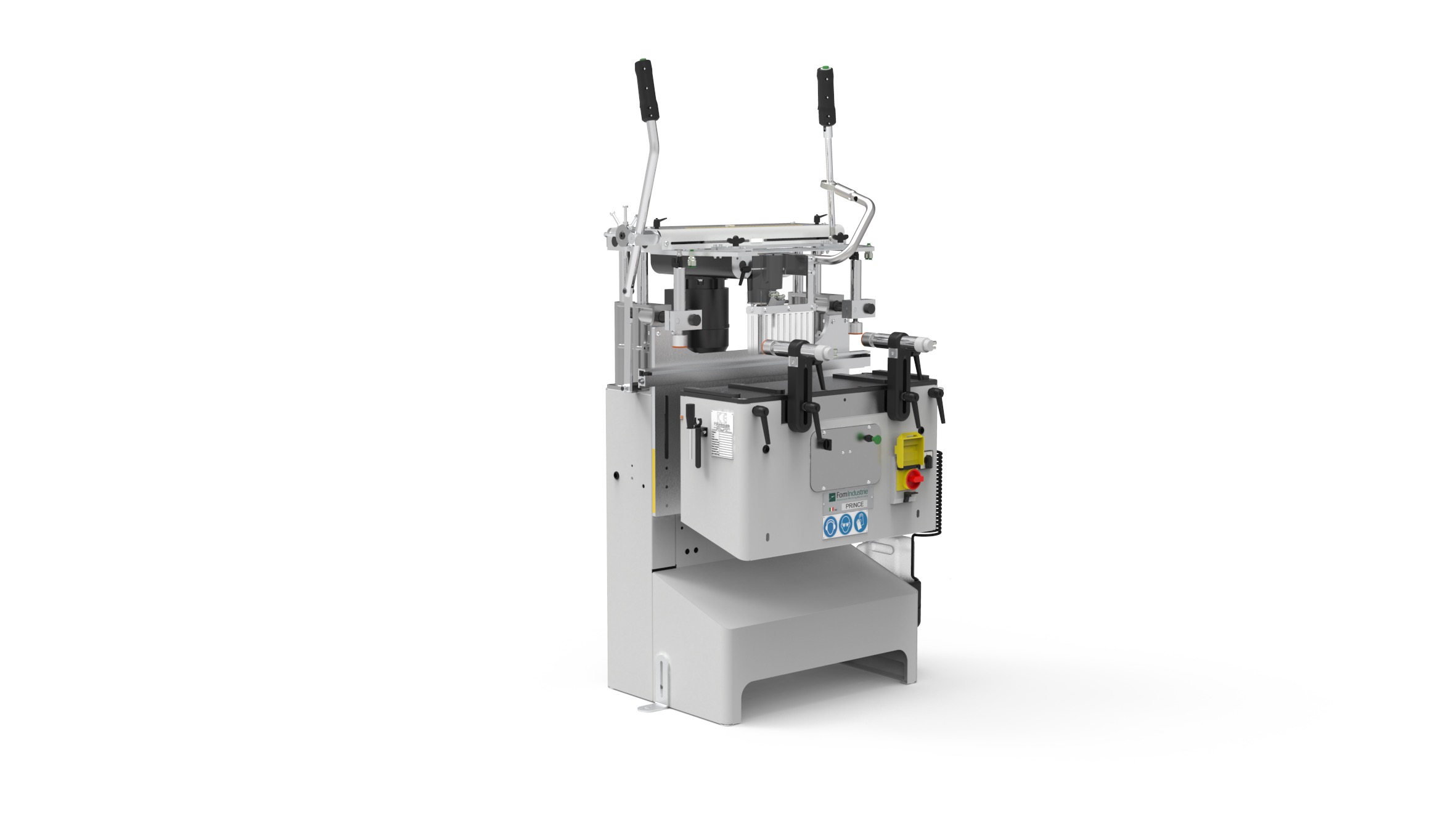

Prince
Electro-pneumatic copy router with adjustable work table height.
The Prince features adjustable work table height, making it suitable to machine even very high profiles. Transfer of the head is by indirect levers. Quick change system in the ER20 collet holder spindle. Piece locking by a pair of horizontal vices and a pair of vertical pneumatic vices. The pneumatic tracer completes the equipment.
- Adjustable work table height
- Suitable for very high profiles
- ER20 collet holder with quick-change
- Horizontal and vertical pneumatic vices
- Pneumatic tracer included
Working capacity
Click to enlarge
