Drilling Machines
Dedicated drilling for window and door manufacturing.
Purpose-designed drilling machines for aluminium profile production, from standalone units to configurations that integrate with FOM sawing and machining lines.
Highlights
- Single and double head configurations
- Rapid pneumatic hole spacing adjustment
- 8-position mechanical stops
- Y-axis adjustable vice table

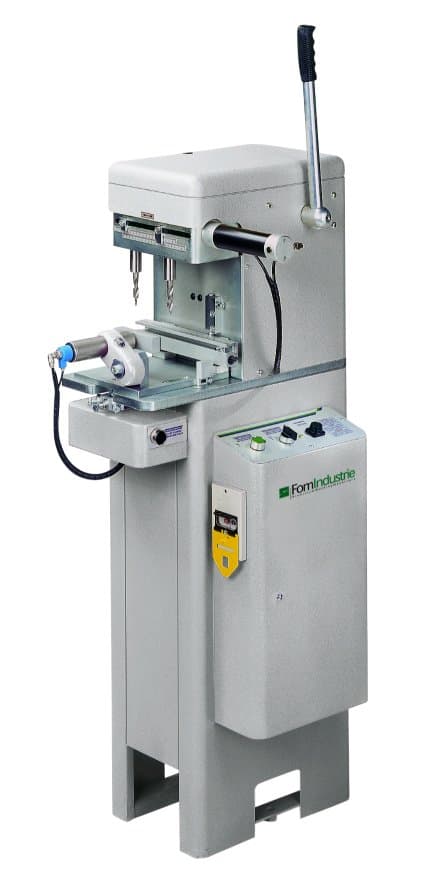

Pegaso
Single head electro-pneumatic drilling machine with two in-line spindles.
The Pegaso is a single-head electro-pneumatic drilling machine with two spindles in line and variable spacing. Feed is manual or pneumatic. Rapid positioning by pneumatic adjustment of hole spacing, with the option of storing 2 spacings. Vice table adjustable along the Y axis with 8-position mechanical stops.
- Two in-line spindles with variable spacing
- Manual or pneumatic feed
- Pneumatic hole spacing adjustment
- 2 storable spacing settings
- Y-axis vice table with 8 mechanical stops

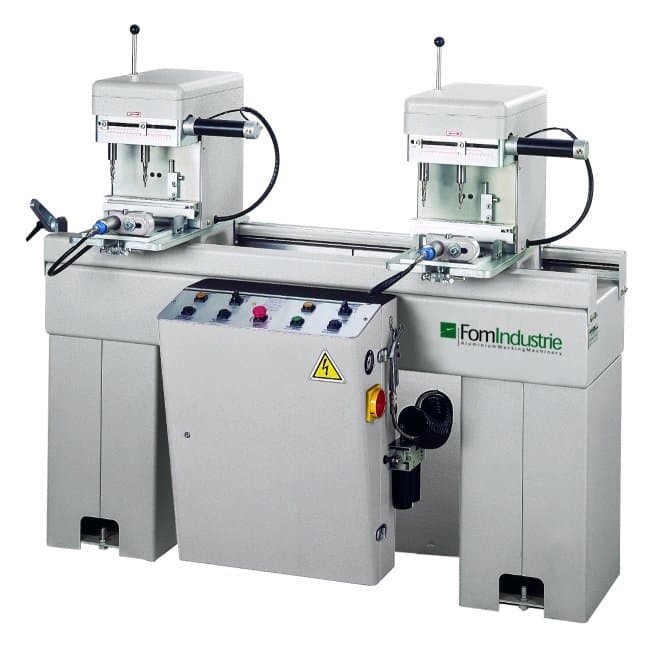

Pegaso 2
Two-unit electro-pneumatic double head drilling machine.
The Pegaso 2 is a double-head drilling machine with two mobile heads, each with two spindles of variable spacing. Rapid positioning by pneumatic hole spacing adjustment, with 2 storable spacings. Vice table adjustable along the Y axis with 8-position mechanical stops. Available in 1.6 m or 3 m versions.
- Two mobile heads, two spindles each
- Variable spindle spacing per head
- Pneumatic spacing adjustment
- 2 storable spacing settings
- Available in 1.6 m and 3 m versions
Interested in the Drilling Machines range?
Tell us which model you’re interested in or describe your production requirements — we’ll come back to you with tailored advice and pricing for the Australian market.
- Pegaso
- Pegaso 2
